Casa /Produtos/Tricone Rock Bit/High Quality 6 1/2" Tungsten Carbide Insert IADC 837 Tricone Roller Drill Bit

High Quality 6 1/2" Tungsten Carbide Insert IADC 837 Tricone Roller Drill Bit

1 peça
MOQ
negotiated
preço
High Quality 6 1/2" Tungsten Carbide Insert IADC 837 Tricone Roller Drill Bit
Características Galeria Descrição de produto Peça umas citações
Características
Especificações
tipo: bocado tricone do tci, mina que peneira a malha
Aplicativo: óleo, gás, poço de água, perfuração do poço de petróleo do diamante
Cor: preto ou como a exigência de clientes
Formação: macio à formação média, ao mudstone, como o xisto duro, a pedra calcária macia, etc.
Vantagem: Serviço de alta qualidade e melhor, de grande resistência, bens e eficiência elevada
Informação básica
Lugar de origem: China
Marca: GLORYTEK
Certificação: CE,SGS,TUV
Número do modelo: 6 3-4” IADC517
Condições de Pagamento e Envio
Detalhes da embalagem: Embalagem de Exportação Padrão
Tempo de entrega: 5-7 dias úteis
Termos de pagamento: L/C,D/A,D/P,T/T,Western Union,MoneyGram
Habilidade da fonte: 2.000 peças por mês
Descrição de produto
High Quality 6 1/2" Tungsten Carbide Insert IADC 837 Tricone Roller Drill Bit
Product Overview

High Strength Tricone Rock Bit 6 1/2" For Soft To Hard Formation

Product Description

Tricone drill bits have been in continuous use in the water well, oil & gas industry, and continue to be improved through ongoing innovation. We offer a comprehensive selection of tricone bits designed for every application, including tungsten carbide insert (TCI) bits and steel tooth bits for the most demanding drilling conditions.

Tricone bits deliver faster cutting speeds and extended service life across all ground conditions, particularly in varying formations. They provide higher penetration rates and superior drilling quality.

The 6 1/2" blast hole bits are engineered for drilling soft to medium hard formations with rock compressive strength. Suitable formations include shale, limestone, quartzite, slate, sandstone, and granite.

Applications
  • Very soft formations with low compressive strength and high drillability
  • Shale, clay, sandstone, gravel, and similar materials
Specifications
Bit Size API Thread Recommended Torque (KN.M)
6" (152.4 mm)3 1/2"9.5-12.2
6 1/8" (155.6 mm)3 1/2"9.5-12.2
6 1/4" (158.8 mm)3 1/2"9.5-12.2
6 1/2" (165.1 mm)3 1/2"9.5-12.2
6 5/8" (168.3 mm)3 1/2"9.5-12.2
6 3/4" (171.5 mm)3 1/2"9.5-12.2
7 1/2" (190.5 mm)4 1/2"16.3-21.7
7 5/8" (193.7 mm)4 1/2"16.3-21.7
7 7/8" (200 mm)4 1/2"16.3-21.7
8 3/8" (212.7 mm)4 1/2"16.3-21.7
8 1/2" (215.9 mm)4 1/2"16.3-21.7
8 5/8" (219.1 mm)4 1/2"16.3-21.7
8 3/4" (222.3 mm)4 1/2"16.3-21.7
9 1/2" (241.3 mm)6 5/8"38-43.4
9 5/8" (244.5 mm)6 5/8"38-43.4
9 7/8" (250.8 mm)6 5/8"38-43.4
10 1/2" (266.7 mm)6 5/8"38-43.4
10 5/8" (269.9 mm)6 5/8"38-43.4
11" (279.4 mm)6 5/8"38-43.4
11 5/8" (295.3 mm)6 5/8"38-43.4
12" (304.8 mm)6 5/8"38-43.4
12 1/4" (311.2 mm)6 5/8"38-43.4
12 5/16" (312.7 mm)6 5/8"38-43.4
12 3/8" (314.3 mm)6 5/8"38-43.4
12 7/16" (315.9 mm)6 5/8"38-43.4
12 5/8" (320.7 mm)6 5/8"38-43.4
13 1/8" (333.4 mm)6 5/8"38-43.4
13 1/2" (342.9 mm)6 5/8"38-43.4
13 5/8" (346.1 mm)6 5/8"38-43.4
13 3/4" (349.3 mm)6 5/8"38-43.4
Packaging & Shipping

Tricone drill bits for water well drilling are packaged in carton boxes. Samples are shipped by express delivery, while batch products are shipped by sea. Sample delivery typically takes 3-5 days, with batch delivery times dependent on order quantity.

Our Advantages
  • CE and SGS certified products with guaranteed quality, delivery time, and secure payment
  • 20+ years of manufacturing experience in drill bits
  • Powerful technology support and mature manufacturing expertise
  • Strict quality control procedures before delivery
  • 24-hour online customer service
  • Customized products available for special requirements
Product Images

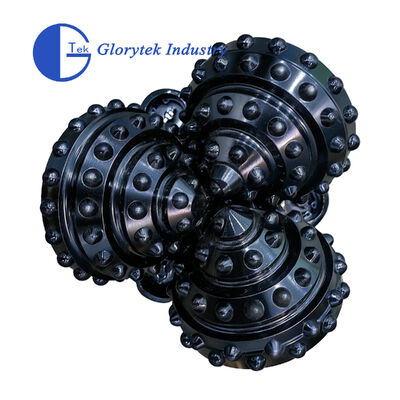

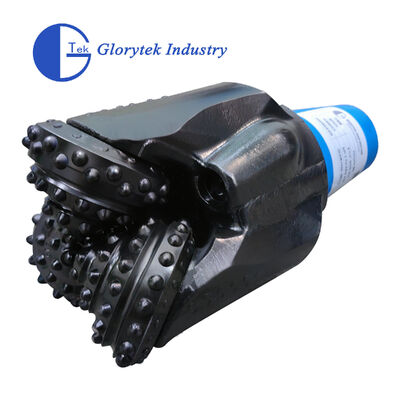

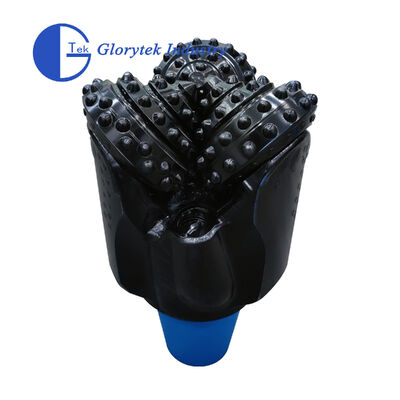

High Quality 6 1/2" Tungsten Carbide Insert IADC 837 Tricone Roller Drill Bit 0 High Quality 6 1/2" Tungsten Carbide Insert IADC 837 Tricone Roller Drill Bit 1
Company Profile
High Quality 6 1/2" Tungsten Carbide Insert IADC 837 Tricone Roller Drill Bit 2

Glorytek Industry (Beijing) Co., Ltd is a professional manufacturer and supplier of drilling equipment and drilling tools with over 20 years of experience. We are supported by a highly experienced R&D team and engineers that enable us to successfully complete all assigned projects according to client requirements.

Our factory covers an area of 250,000 square meters, with construction area of approximately 150,000 square meters. We operate over 200 sets of machining machinery, CNC processing centers, friction welding machines, and testing equipment, with more than 600 employees. Our products have been exported to more than 60 countries worldwide.
