Casa /Produtos/Broca PDC/6 Inch PDC Drill Bit 5 Blade Steel or Matrix Body for Mining Projects

6 Inch PDC Drill Bit 5 Blade Steel or Matrix Body for Mining Projects

1 peça
MOQ
negotiable
preço
6 Inch PDC Drill Bit 5 Blade Steel or Matrix Body for Mining Projects
Características Galeria Descrição de produto Peça umas citações
Características
Especificações
Personalizado:: Personalizado
Vantagem: Alta eficiência, resistente ao desgaste
Conecte a linha: API ou Reg ou Personalizado
Material:: aço e matriz
Tamanhos disponíveis: 2 7/8 - 26 polegadas
Indústrias Aplicáveis: poço de água, poço de petróleo e HDD
Tamanho da lâmina: 6-12 polegadas
Formações: Formações suaves a médias
Available Blades Não: baseado no seu diâmetro
Informação básica
Lugar de origem: China
Marca: Glorytek
Número do modelo: 6''
Condições de Pagamento e Envio
Detalhes da embalagem: Pacote de sea -dura
Tempo de entrega: 20 dias
Termos de pagamento: L/C,D/A,D/P,T/T,Western Union,MoneyGram
Habilidade da fonte: 4000 peças por mês
Descrição de produto
6 Inch PDC Drill Bit 5 Blade Steel or Matrix Body for Mining Projects
Product Overview
PDC drill bits are drilling tools used in the oil and gas industry to penetrate rock formations. These bits feature a cutting structure with synthetic diamond inserts called polycrystalline diamond compact (PDC) cutters. PDC bits are commonly used in directional drilling applications due to their stability and directional control capabilities.

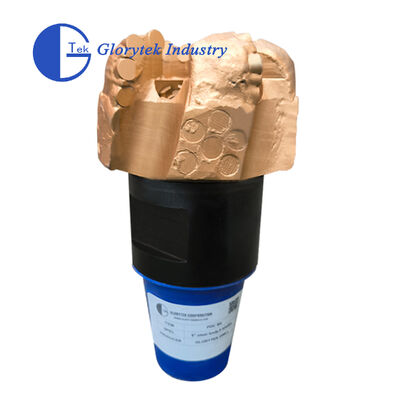

6 Inch PDC Drill Bit 5 Blade Steel or Matrix Body for Mining Projects 0
Technical Specifications
Bit Type 6" 8-1/2" 8-1/2" 12-1/4" Bit Type 17-1/2" GM1606T
IADC Code M423 M432 M332 M323 IADC Code M432 M332
Blade 5 6 8 6 Blade 6
Cutter Size (mm) Φ13MM Φ16MM Φ13MM Φ16MM Cutter Size (mm) Φ16MM;Φ13MM
Nozzle Qty/Type 5 13.2 9.6 30.78 Cutter Qty Φ16*58;Φ13*81
Nozzle Qty/Type 3NZ 6NZ 4NZ 6NZ Nozzle Qty/Type 8NZ
Gauge Length 1.5" 2.2" 2" 2.5" Gauge Length (mm) 110
Connection 3-1/2" API REG 4-1/2" API REG 4-1/2" API REG 6-5/8" API REG Connection 7-5/8" API REG
Make up Torque(KN.m) 10.4~11.4 24.1~26.5 24.1~26.5 51.7~56.9 N.W./ G.W.(KG) 338/388
Rotary Speed(rpm) 60-260 60-260 60-260 60-260 Nozzle Size (inch) 10/32
Weight on Bit(KN) 8-50 20-100 20-100 30-140 Rotary Speed(Rpm) 60-260
Max.WOB(KN) 90 130 130 180 Weight On Bit(KN) 30-200
Flow Rate(lps) 10-30 22-35 22-35 38-70 Max.WOB (KN) 240
Flow Rate(lps) 45-80
Company Profile
Glorytek Industry (Beijing) Co., Ltd located in Beijing, China, is an integrated corporation specialized in manufacturing and exporting top quality drilling equipment and drilling parts for decades. We are supported and assisted by a highly experienced team of designers and engineers that enable us to complete all the assigned projects successfully as per the specified requirement from our clients.
Our products are widely used in the scope of mining, water well drilling and exploration, anchor grouting project, side slope protection engineering, oil and gas engineering, underwater rock drilling & blasting operations of seaport channel, hydropower project, national defense projects etc.

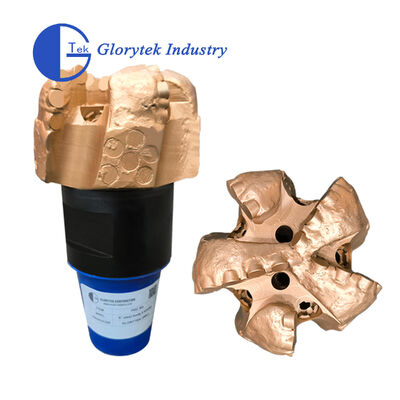

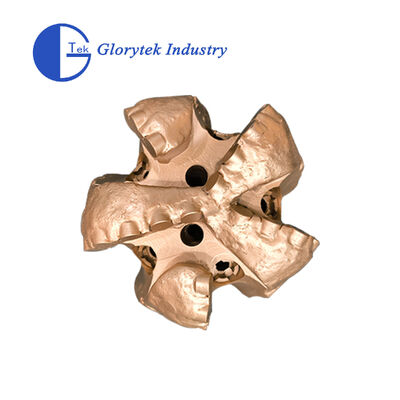

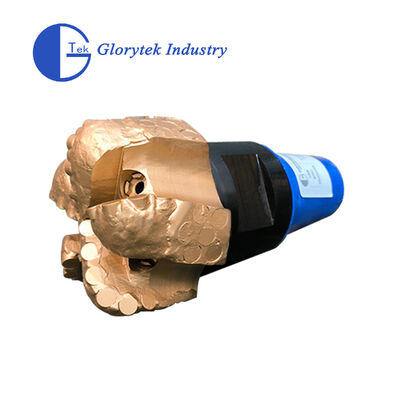

6 Inch PDC Drill Bit 5 Blade Steel or Matrix Body for Mining Projects 1 6 Inch PDC Drill Bit 5 Blade Steel or Matrix Body for Mining Projects 2
After-sale Warranty
  • Free change once the problem caused by the quality issue.
  • Timely after-sale assistance shall be provided all the time.
Frequently Asked Questions
Q: Are you original manufacturer or trading company?
A: We are an integrated corporation specialized in manufacturing and exporting.
Q: Can you supply related drilling tools?
A: Yes, we can supply full set of drilling tools, such as drill pipe, tricone bit, PDC bit, drag bit, DTH Hammer. Moreover, we have drilling equipments like rigs, mud pump, air compressor, etc. as well.
Q: Which payment terms can you accept?
A: Normally we prefer 30% advance payment after purchase order by T/T, 70% remaining payment before shipping by T/T. And 100% advance payment after purchase order by T/T for small orders.
Q: How is your delivery time?
A: This will depend on your purchasing quantity. Normally we can deliver 3-5 days.
Q: How can you ensure the quality?
A: We have our professional QC and all the products will be strict inspection and testing for every order before shipping out.
