Casa /Produtos/máquinas de perfuração/GL500S Crawler Mounted Water Well Drilling Rig with 500m Depth and 153KW Diesel Engine for Agricultural Irrigation

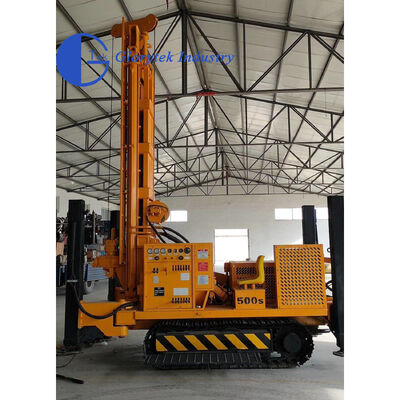

GL500S Crawler Mounted Water Well Drilling Rig with 500m Depth and 153KW Diesel Engine for Agricultural Irrigation

1
MOQ
negotiable
preço
GL500S Crawler Mounted Water Well Drilling Rig with 500m Depth and 153KW Diesel Engine for Agricultural Irrigation
Características Galeria Descrição de produto Peça umas citações
Características
Especificações
Nome: Equipamento de perfuração de poço de água GL500S
Palavra-chave: Máquinas de perfuração de poços de engenharia
Profundidade: 500 milhões
Diâmetro de perfuração: 105-325mm
Pressão do Ar: 1.2-3.5Mpa
Comprimento da haste: 3 m, 6 m
Haste de broca dia.: 89-102-114mm
Força de elevação: 30T
O motor: 153KW
Dimensão: 5700*1900*2400mm
Destacar:

500m Depth Water Well Drilling Rig

,

153KW Diesel Engine Drill Rig Machine

,

Crawler Mounted Borehole Drilling Machine
Informação básica
Lugar de origem: China
Marca: Glorytek
Certificação: CE
Número do modelo: GL500S
Condições de Pagamento e Envio
Detalhes da embalagem: Embalagem de Exportação Padrão
Tempo de entrega: 20 dias
Termos de pagamento: T/T, L/C, Western Union, MoneyGram, D/P, D/A.
Habilidade da fonte: 40 conjuntos/mês
Descrição de produto
GL500S Water Well Drilling Rig for Agricultural Irrigation Engineering
The GL500S crawler water well drilling rig is engineered for demanding applications in geothermal drilling, industrial drilling, and agricultural irrigation projects. This versatile machine offers flexible operation compatibility with air compressors, mud pumps, and foam pumps.
Technical Specifications
Drilling Depth 500 m
Drilling Diameter 105-325 mm
Air Pressure 1.2-3.5 Mpa
Rod Length 3.0 / 6.0 m
Rod Diameter φ89 / φ102 / φ114 mm
Main Shaft Pressure 5 T
Lifting Force 30 T
Total Swing Stroke 6.8 M
Max. Rotary Torque 15000 N.m
Max. Rotary Speed 100 r/min
Secondary Winch Lifting Force 5 T
Jacks Stroke 1.5 M
Moving Speed 2.5 km/h
Climbing Ability 21°
Weight of the Rig 10.28 T
Diesel Engine 153 KW
The Oil Pump Plunger Pump
Overall Dimensions 5700 × 1900 × 2400 MM
Working Condition Loose Layer and Bedrock
Product Gallery
GL500S Crawler Mounted Water Well Drilling Rig with 500m Depth and 153KW Diesel Engine for Agricultural Irrigation 0
Customer Visiting
GL500S Crawler Mounted Water Well Drilling Rig with 500m Depth and 153KW Diesel Engine for Agricultural Irrigation 1
Manufacturer Profile
GL500S Crawler Mounted Water Well Drilling Rig with 500m Depth and 153KW Diesel Engine for Agricultural Irrigation 2
Glorytek Industry (Beijing) Co., Ltd
Glorytek Industry ( Beijing) Co., Ltd is a professional manufacturer and supplier of drilling equipment and drilling tools with over 20 years experience. We are supported and assisted by highly experienced R & D team and engineers that enable us to complete all the assigned projects successfully as per clients’ requirements.
Glorytek Drill is one of the most important member of “Sundrill Corporation”.Our factory covers an area of 250,000 square meter, construction area is about 150,000 square meter, having machining machinery, CNC processing center, friction welding machine, testing equipment etc. over 200 sets and more than 600 employees.Our products have been exported more than 60 countries around the world.
