Fully Hydraulic Crawler Type Drill/Drilling Rig Borehole Drilling Equipment 350m Depth

1
MOQ
negotiable
preço
Fully Hydraulic Crawler Type Drill/Drilling Rig Borehole Drilling Equipment 350m Depth
Características Galeria Descrição de produto Peça umas citações
Características
Especificações
Nome: Tipo totalmente hidráulico da broca da esteira rolante/equipamento de perfuração do poço da platafor
Palavra-chave: Perfuração de poço de água/equipamento de perfuração
Profundidade: 350m
Diâmetro de perfuração: 105-325mm
Pressão do ar: 1.25-3,5 MPa
Comprimento da haste: 3m/6m
Haste de broca dia.: 76/89/102mm
Força de elevação: 26T
Peso da plataforma: 8.5t
Dimensão: 5,9 m x 1,8 m x 2,3 m
Informação básica
Lugar de origem: China
Marca: Glorytek
Certificação: CE
Número do modelo: GL350S
Condições de Pagamento e Envio
Detalhes da embalagem: Embalagem de Exportação Padrão
Tempo de entrega: 20 dias
Termos de pagamento: T/T, L/C, Western Union, MoneyGram, D/P, D/A
Habilidade da fonte: 40 conjuntos/mês
Descrição de produto

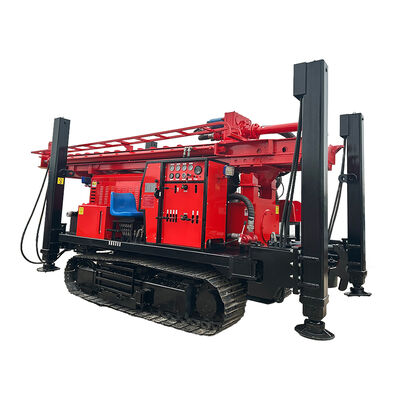

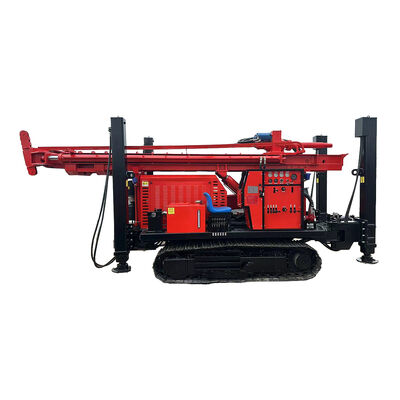

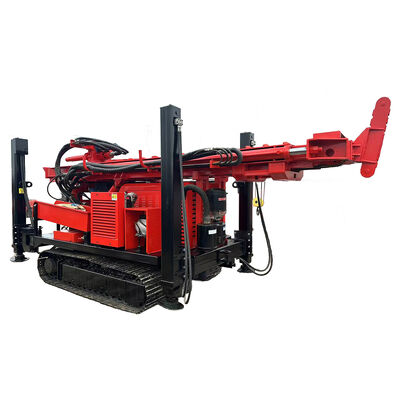

GL350S Fully Hydraulic Crawler Type Borehole Drill Rig

Description:

The GL350S water well drilling rig has the characteristics of standardized configuration, compact and reasonable structure, fast drilling speed, economical and durability, and low failure rate.

nce launched, it has been recognized by the market and has been widely used in mining engineering construction, civil drilling, geothermal drilling, and other fields.

It is capable of walking on different kinds of roads and easy to move.The stainless steel track is reinforced and the climbing ability is stronger.



Tehnical Parameter:





Technical Parameter
Max drilling depth 350m
Drilling diameter 105-325mm
Air pressure 1.25-3.5Mpa
Air consumption 16-55m³/min
Rod length 3m/6m
Rod diameter 76/89/102mm
Main shaft pressure 6T
Lifting force 26T
Fast lifting speed 24m/min
Fast forwarding speed 50m/min
Rotary torque 9900 N.M
Rotary speed 30/170r/min
Winch lifting force 1.5T
High leg stroke 1.5m
Drilling efficiency 10-35m/h
Moving speed 2.5Km/h
Uphill angle 21°
Weight of the rig 8.5T
Dimension 5.9m x 1.8m x 2.3m
Working condition loose layer or bedding rock
Drilling method

Top Hammer Hydraulic Rotating and feeding,

Down the hole hammer or mud pump drilling
Suitable hammer Medium and high pressure DTH hammer
Optional accessories Mud pump, centrifugal pump, generator, foam pump
Diesel Engine 90KW



Fully Hydraulic Crawler Type Drill/Drilling Rig Borehole Drilling Equipment 350m Depth 0Fully Hydraulic Crawler Type Drill/Drilling Rig Borehole Drilling Equipment 350m Depth 1Fully Hydraulic Crawler Type Drill/Drilling Rig Borehole Drilling Equipment 350m Depth 2



Company Profile



Fully Hydraulic Crawler Type Drill/Drilling Rig Borehole Drilling Equipment 350m Depth 3

Glorytek Industry (Beijing)Co.,Ltd., located in Beijing, China, is an integrated corporation specialized in manufacturing and exporting top quality drilling equipment and drilling parts for decades. We are supported and assisted by a highly experienced team of designers and engineers that enable us to complete all the assigned projects successfully as per the specified requirement from our clients.


Our products are widely used in the scope of mining, water well drilling and exploration, anchor grouting project, side slope protection engineering, oil and gas engineering, underwater rock drilling & blasting operations of seaport channel, hydropower project, national defense projects ect.

Fully Hydraulic Crawler Type Drill/Drilling Rig Borehole Drilling Equipment 350m Depth 4



We have attended many exhibitions to showcase our products.



Fully Hydraulic Crawler Type Drill/Drilling Rig Borehole Drilling Equipment 350m Depth 5
